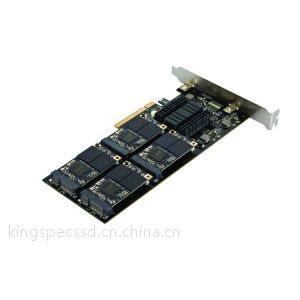

MC2J67MXXX规格书

Items

Parameter

MC2J67MXXX

Size

Inch

190mm x 75mm

Interface

PCI-E：PCI-E 2.0 X8,Max band width  2000MB/s; mSATA：SATA 3.0, Max band width 300MB/s;

Support RAID

RAIDI 0, RAIDI 1, RAIDI 0+1

Performance

Capacity

500GB

1000GB

Speed

1850/800

1900/1600

IOPS(4K)

RR/RW:84000/84000

Average access time

0.1ms

Flash

Nand flash

MLC

Power consumption

Input voltage

12V (±8%)

Free

10W

Working

12W

Reliability and Stability

write life

8 years @  100GBwrite/day(32GB)

read life

unlimited

Wear leveling

static and dynamic  wear-leveling

storage life

10 years under 25℃

MTBF

2,000,000 hours

Error checking

 BCH 8/16/24/40 bits ECC

Bad block management

Automatic bad block  management

Enviroment

working temp.

-20-75℃

Storage temp.

-45-125℃

Humidity

5-95%

Warranty time

2 years
